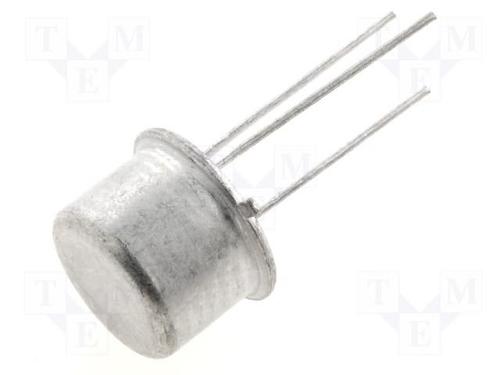

Image is for your reference only,please check specifications for details

2N2905A - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC33745600
Category:
BJT Transistor, BJT
Package:
TO-5-3
Datasheet:
Datasheet 3D Model
Description:
2N2905A Series PNP 60V 600mA 0.6W Through Hole Switching Transistor - TO-39-3
Stock Locations:
Availability:
1,609 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.58

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The 2N2905A and 2N2907A are silicon Planar Epitaxial PNP transistors in Jedec TO-39 (for 2N2905A) and in Jedec TO-18 (for 2N2907A) metal case. They are designed for high speed saturated switching and general purpose applications.

Show

2N2905A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-5-3
Voltage Rating (DC)	-60.0 V
Current Rating	-600 mA
Power Rating	800 mW
Number of Positions	3 Position
Polarity	PNP, P-Channel
Power Dissipation	600 mW
Gain Bandwidth Product	200 MHz
Breakdown Voltage (Collector to Base)	-60.0 V (min)
Breakdown Voltage (Collector to Emitter)	60 V
hFE Min	100 @150mA, 10V
hFE Max	300
Input Power (Max)	600 mW
DC Current Gain (hFE)	50
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	600 mW
	Show
Size-Length	9.4 mm
Size-Width	9.4 mm
Size-Height	1.5 mm
Material	Silicon
Operating Temperature	175℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
