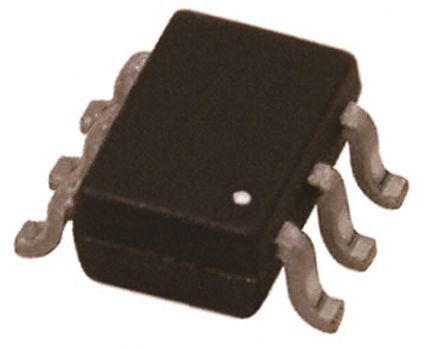

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased (Dual) 20V 600mA 150MHz 300mW Surface Mount SMT6

Show

IMH23T110 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-457
Power Rating	0.3 W
Polarity	NPN
Power Dissipation	0.3 W
Breakdown Voltage (Collector to Emitter)	20 V
Continuous Collector Current	600mA
hFE Min	820 @50mA, 5V
hFE Max	820
Input Power (Max)	300 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	150 MHz
Power Dissipation (Max)	300 mW
	Show
Size-Length	3 mm
Size-Width	1.8 mm
Size-Height	1.2 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
