Description

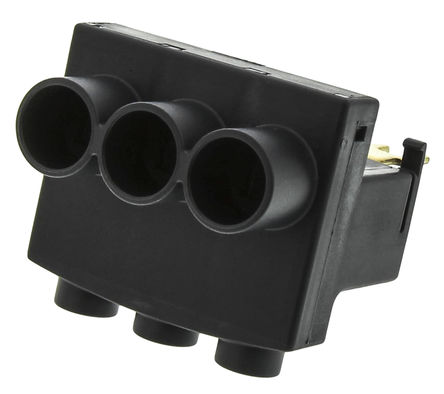

The GV1G09 is a 3-position 63A wire-to-board Terminal Block with screw clamp terminals.
IP20 Protection

Show

GV1G09 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Contacts	3 Contact
Wire Gauge	4.00 AWG
Supply Voltage (DC)	690 V
Voltage Rating (AC)	575 V
Current Rating	63 A
Number of Positions	3 Position
Voltage Rating	600 V
	Show
Size-Height	30.0 mm
Product Lifecycle Status	Not Recommended for New Design
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
