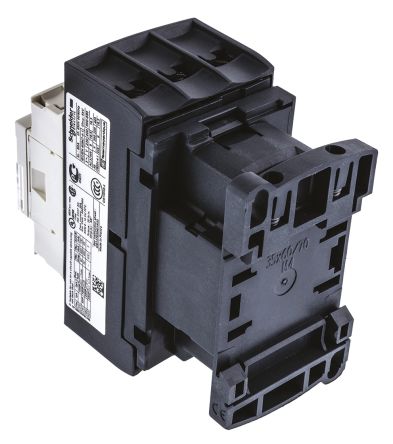

Image is for your reference only,please check specifications for details

LC1D38P7 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC16624840
Category:
Industrial Relay
Datasheet:
Datasheet 3D Model
Description:
SCHNEIDER ELECTRIC LC1D38P7 Contactor, 690V, 3Pole, 3PST-NO, DIN Rail, 50A, 230V
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LC1D38P7 is a 3-pole TeSys D Contactor with AC coil. 3NO power pole contact composition. 1NO-1NC auxiliary contact composition. With safety cover. Without built-in suppressor module. Type mirror contact (1NC) conforming to IEC 60947-4-1, type mechanically linked (1NO-1NC) conforming to IEC 60947-5-1. TeSys D contactor offers quick simple setup, while maintaining a compact size of 45 and 55mm (40 to 65A) as well as compliance with international standards. From 40 to 65A versions are equipped with EverLink, this new patented terminal technology, assures a permanent tightening quality even in the event of conductor creep.
Motor control resistive load contactor application
3W AC-3, 5W AC-1 power dissipation

Show

LC1D38P7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Operating Voltage	690 V
Power Rating	18.5 kW
Contacts Type	DPDT
Contact Current Rating	38 A
Coil Voltage	230 VAC
Coil Voltage (AC)	230 V
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-5 ℃
	Show
Size-Length	85 mm
Size-Width	45 mm
Size-Height	102 mm
Weight	380 g
Operating Temperature	-25℃ ~ 55℃
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
