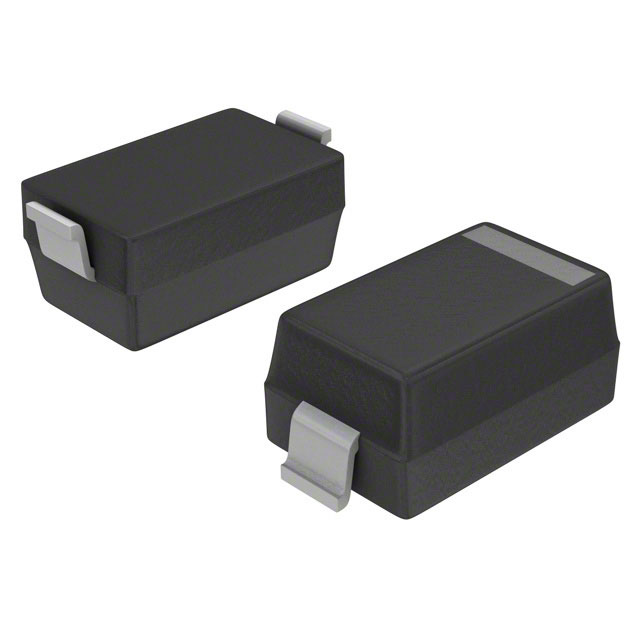

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MMSZ5226B is a half watt, general purpose, medium current surface mount Zener Diode features high power and current handling capability, low gate charge (typical 5nC), class 3 ESD rating (>16 kV) per human body model. This Zener diode is general usage and suitable for many different applications.
- 340°C/W Junction to ambient thermal resistance
- 25µA at 1V Reverse leakage current
MMSZ5226B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 2 Pin |
| Case/Package | SOD-123 |
| Number of Positions | 2 Position |
| Power Dissipation | 0.5 W |
| Test Current | 20 mA |
| Zener Voltage | 3.3 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
