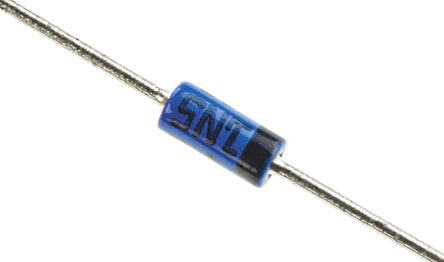

1N5711 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC77745
Category:
Schottky Diode
Package:
DO-35
Datasheet:
Datasheet 3D Model
Description:
1N5711 Series 70V 15mA Small Signal Schottky Diode Through Hole - DO-35
Stock Locations:
Availability:
521 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.1

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1N5711 is a metal to silicon small signal Schottky Diode, primarily intended for high level UHF/VHF detection and pulse application with broad dynamic range.
High Breakdown
Low Turn-on Voltage
Ultrafast Switching

Show

1N5711 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-35
Voltage Rating (DC)	70.0 V
Current Rating	15 mA
Capacitance	2.00 pF
Output Current	15 mA
Breakdown Voltage	70 V
Load Current	15 mA
Number of Positions	2 Position
Forward Voltage	1 V
Polarity	Standard
Power Dissipation	430 mW
Forward Current	15 mA
Maximum Forward Voltage (Max)	410 mV
Forward Current (Max)	15 mA
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	430 mW
	Show
Size-Length	4.5 mm
Size-Width	2 mm
Size-Height	2 mm
Weight	0.004535924 kg
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
