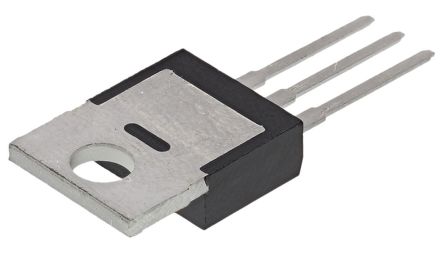

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MBR20200CTTU is a dual high-voltage Schottky Rectifier with matte tin-finish terminals.
Low forward voltage drop
Low power loss and high efficiency
High surge capability
Terminal leads surface is corrosion-resistant and can withstand to 260°C
Wave soldering or per MIL-STD-750 method 2026
Dual and common cathode

Show

MBR20200CTTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Forward Voltage	1 V
Forward Current	20000 mA
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	20 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	10.67 mm
Size-Width	4.83 mm
Size-Height	16.51 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
Mil-Spec	Yes
