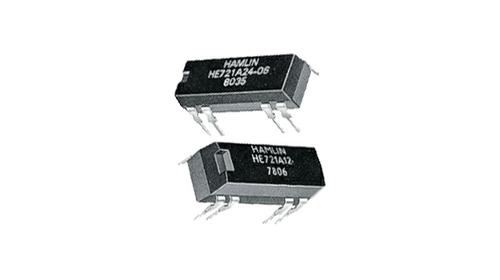

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The HE721A0500 is a Standard Miniature Reed Relay with transfer moulded external shield body, SPST-NO contact and through hole terminals. This HE700-series form-A relay features lower power coil consumption than competing electromechanical devices. Hermetically sealed switching contact is immune to the effects of its environment.
- 1ms Operate/release maximum time
- -40 to 85°C Operating temperature range
HE721A0500 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Voltage Rating (DC) | 200 V |
| Contacts Type | SPST-NO |
| Power Dissipation | 10 W |
| Contact Resistance | 0.15 Ω |
| Contact Current Rating | 0.5 A |
| Coil Voltage | 5 VDC |
| Coil Current | 10 mA |
| Coil Resistance | 500 Ω |
| Carry Current | 1.20 A |
| Coil Voltage (DC) | 5 V |
| Input Power (Max) | 10 W |
| Switching Current (Max) | 500 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Maximum Contact Resistance (Max) | 150 mΩ |
| Show | |
| Size-Length | 16.4 mm |
| Size-Width | 2.4 mm |
| Size-Height | 5.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
