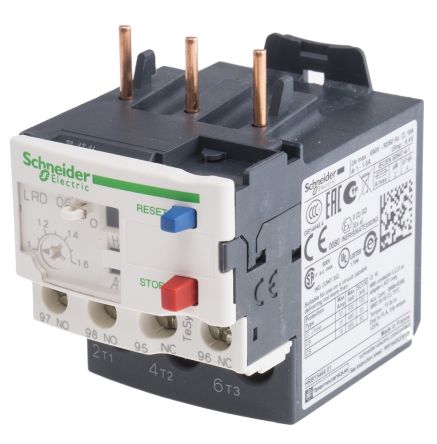

Image is for your reference only,please check specifications for details

LRD06 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC15768468
Category:
Industrial Relay
Package:
600
Datasheet:
Datasheet 3D Model
Description:
SCHNEIDER ELECTRIC / TELEMECANIQUE LRD06 Overload Relay, TeSys D, Thermal, 1A, 1.7A, 600V, 440V
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

LRD06 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Case/Package	600
Contact Current Rating	1.6 A
Coil Voltage	440V (max)
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	690 V
Supply Voltage	690 VAC
Supply Voltage (Max)	600 V
	Show
Size-Length	123 mm
Size-Width	45 mm
Size-Height	51 mm
Weight	0.124 kg
Operating Temperature	-20℃ ~ 60℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
