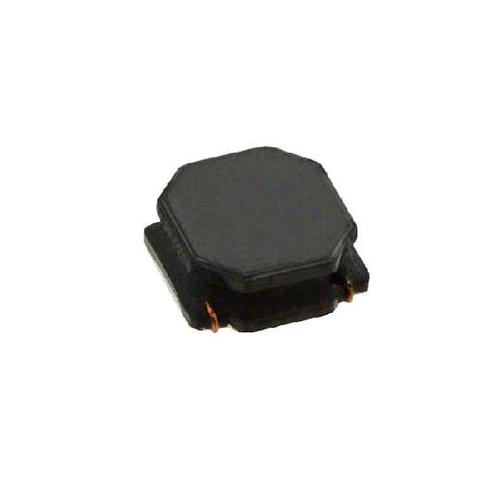

Image is for your reference only,please check specifications for details
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 4.7µH Shielded Wirewound Inductor 3A 40.3mOhm Max Nonstandard
NR6028T4R7M Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 2424 |
| Current Rating | 3 A |
| Capacitance Tolerance | ±20 % |
| Halogen Free Status | Halogen Free |
| Inductance | 4.7 µH |
| Self Resonant Frequency | 39 MHz |
| Part Family | NR |
| Inductance Tolerance | ±20 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | ≤40.3 mΩ |
| Current Rating (DC) | 3 A |
| Operating Temperature (Max) | 120 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Resistance (DC Max) | 0.031 Ω |
| Show | |
| Size-Length | 6.0 mm |
| Size-Width | 6.0 mm |
| Size-Height | 2.8 mm |
| Operating Temperature | -25℃ ~ 120℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 2000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8504500000 |
