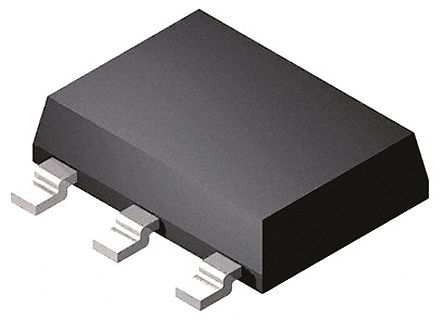

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

TLE4266G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Operating Voltage	5.5V ~ 45V
Number of Outputs	1 Output
Input Voltage (DC)	45.0V (max)
Output Voltage	5 V
Output Current	120 mA
Supply Current	400µA ~ 15mA
Number of Positions	3 Position
Quiescent Current	150 mA
voltage rating	250 mV
Input Voltage (Max)	45 V
Input Voltage (Min)	5.5 V
Output Voltage (Min)	5 V
Output Current (Max)	120 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	45 V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Not Recommended
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
