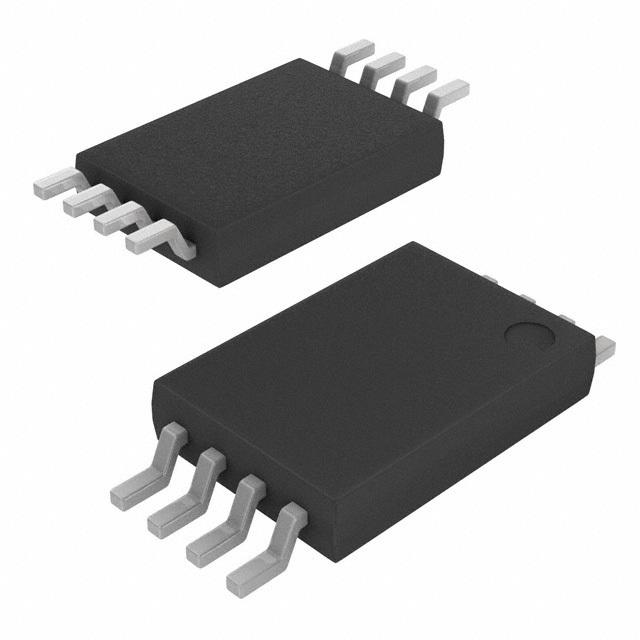

Image is for your reference only,please check specifications for details

SN74CBT3306PWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC14272665
Category:
Logic Controller, Logic IC
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74CBT3306PWR FET Bus Switch, 2Channels, 64A, 4V to 5.5V, TSSOP-8
Stock Locations:
Availability:
1,161 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74CBT3306 dual FET bus switch features independent line switches. Each switch is disabled when the associated output-enable (OE\\\\) input is high.

Show

SN74CBT3306PWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Supply Voltage (DC)	4.00V ~ 5.50V
Input Voltage (DC)	2.00 V
Output Voltage	2 V
Output Current	64 A
Contacts Type	SPST
Supply Current	250 mA
Number of Channels	2 Channel
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	7 Ω
Number of Bits	2 Bit
Propagation Delay Max (tpd)	250 ps
Polarity	Non-Inverting
Voltage Nodes	5.00 V
Bandwidth	200 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4 V
Input Voltage	2 V
	Show
Size-Length	3 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
