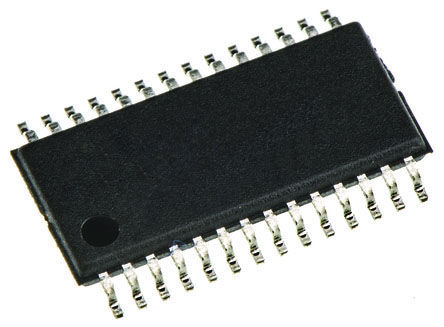

TPS54672PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC13799440
Category:
DC to DC Converter
Package:
HTSSOP-28
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 3V to 6V Non-Inv/Inv/Step Up/Step Down Single-Out 0.2V to 4.5V 6A 28Pin HTSSOP EP Tube
Stock Locations:
Availability:
239 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.34

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

As a member of the SWIFT family of dc/dc regulators, the TPS54672 active bus termination synchronous PWM converter integrates all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that enables maximum performance and flexibility in choosing the output filter L and C components; an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; a slow-start control to limit in-rush currents; and a status output to indicate valid operating conditions.
The TPS54672 is available in a thermally enhanced 28-pin TSSOP (PWP) PowerPAD package, which eliminates bulky heatsinks. TI provides evaluation modules and the SWIFT designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.

Show

TPS54672PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	HTSSOP-28
Number of Outputs	1 Output
Output Voltage	0.2V ~ 4.5V
Output Current	6 A
Number of Positions	28 Position
Quiescent Current	11.0 mA
Number of Regulated Outputs	1 Output
Switching Frequency	350 kHz
Thermal Shutdown	Yes
Topology	Buck
Input Voltage (Max)	6 V
Input Voltage (Min)	3 V
Output Voltage (Max)	4.5 V
Output Voltage (Min)	0.2 V
Output Current (Max)	6 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3 V
Input Voltage	3V ~ 6V
	Show
Size-Length	9.8 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
