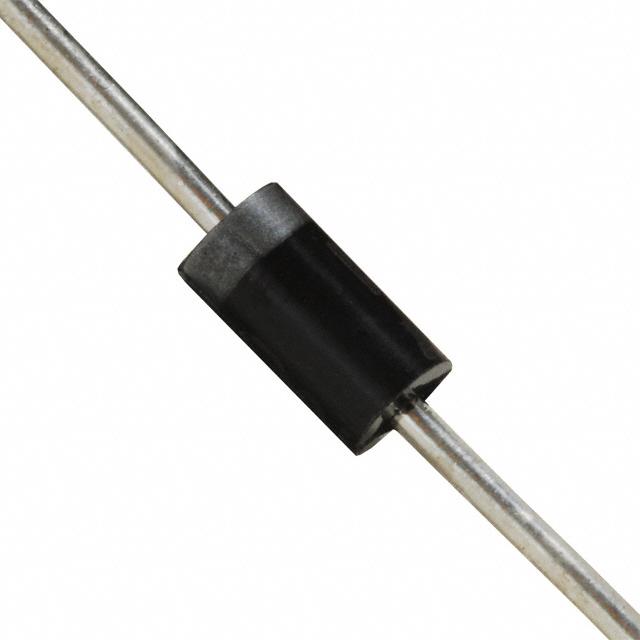

Image is for your reference only,please check specifications for details

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This standard rectifier is designed for general purpose, low power applications.
Features
---
|
Case: Epoxy, Molded
Weight: 0.4 gram (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes: 260 C Max. for 10 Seconds, 1/16 from case
Shipped in plastic bags, 1000 per bag.
Available Tape and Reeled, 5000 per reel, by adding a "RL" suffix to the part number
Available in Fan-Fold Packaging, 3000 per box, by adding a "FF" suffix to the part number
Polarity: Cathode Indicated by Polarity Band
Marking: 1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007
Pb-Free Packages are Available

Show

1N4003 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-41
Voltage Rating (DC)	200 V
Current Rating	1.00 A
Output Current	≤1.00 A
Number of Positions	2 Position
Forward Voltage	1.1V @1A
Polarity	Standard
Forward Current	1 A
Max Forward Surge Current (Ifsm)	30 A
Maximum Forward Voltage (Max)	1.1 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	Show
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Compliant with Exemption
Lead-Free Status	Contains Lead
