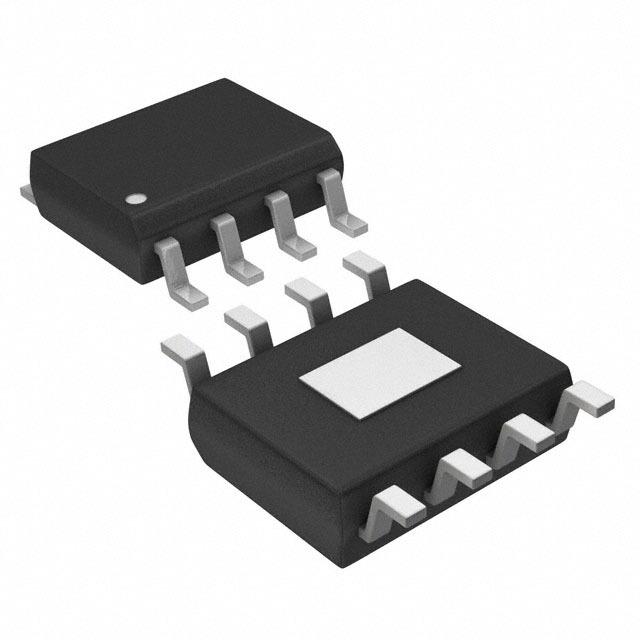

Image is for your reference only,please check specifications for details
- UCC27201QDDARQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC135252724
-
Category:FET Driver
-
Package:HSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Automotive 120V Boot, 3A Peak, High Frequency, High-Side/Low-Side Driver 8-SO PowerPAD -40℃ to 125℃
-
Stock Locations:
-
Availability:255 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.97
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The UCC2720x-Q1 family of high-frequency N channel MOSFET drivers include a 120-V bootstrap diode and high-side and low-side drivers with independent inputs for maximum control flexibility. This allows for N-channel MOSFET control in half bridge, full-bridge, two-switch forward, and active clamp forward converters. The low-side and the high side gate drivers are independently controlled and matched to 1 ns between the turnon and turnoff of each other.
- An on-chip bootstrap diode eliminates the external discrete diodes. Undervoltage lockout is provided for both the high-side and the low-side drivers, forcing the outputs low if the drive voltage is below the specified threshold.
- Features
- • Qualified for Automotive Applications
- • AEC-Q100 Qualified With the Following Results:
- – Device Temperature Grade 1:
- – 40°C to 125°C Ambient Operating Temperature Range
- – Device HBM ESD Classification Level 2
- – Device CDM ESD Classification Level C5
- • Drives Two N-Channel MOSFETs in High-Side and Low-Side Configuration
- • Maximum Boot Voltage: 120 V
- • Maximum VDD Voltage: 20 V
- • On-Chip 0.65-V VF, 0.6-Ω RD Bootstrap Diode
- • Greater than 1 MHz of Operation
- • 20-ns Propagation Delay Times
- • 3-A Sink, 3-A Source Output Currents
- • 8-ns Rise and 7-ns Fall Time With 1000-pF Load
- • 1-ns Delay Matching
- • Specified from –40°C to 140°C (Junction Temperature)
- Applications
- • Power Supplies for Telecom, Datacom, and Merchant Markets
- • Half-Bridge Applications and Full-Bridge Converters
- • Isolated Bus Architecture
- • Two-Switch Forward Converters
- • Active-Clamp Forward Converters
- • High-Voltage Synchronous-Buck Converters
- • Class-D Audio Amplifiers
UCC27201QDDARQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | HSOP-8 |
| Rise/Fall Time | 8ns, 7ns |
| Number of Outputs | 2 Output |
| Power Dissipation | 2700 mW |
| Fall Time (Max) | 300 ns |
| Fall Time (Max) | 350 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2700 mW |
| Supply Voltage | 8V ~ 17V |
| Show | |
| Size-Height | 1.55 mm |
| Operating Temperature | -40℃ ~ 140℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
