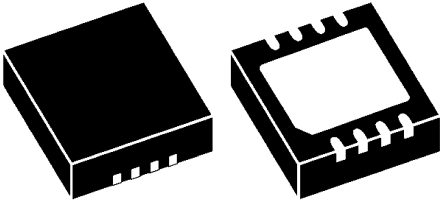

Image is for your reference only,please check specifications for details

ESD1014MUTAG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC6755961
Category:
TVS Diode
Package:
UDFN-10
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR ESD1014MUTAG ESD Protection Device, TVS, 11V, UDFN, 10Pins, 450W
Stock Locations:
Availability:
66 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.41

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ESD1014MUTAG is a low capacitance ESD Protection Array for high speed data lines protection. It is designed to protect high speed data lines from ESD, EFT and lightning.
ESD Rating of Class-3B (Exceeding 8kV) per human body model
ESD Rating of Class-C (Exceeding 400V) per machine model
-40 to 125°C Operating junction temperature range

Show

ESD1014MUTAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UDFN-10
Operating Voltage	3.3 V
Power Rating	450 W
Halogen Free Status	Halogen Free
Breakdown Voltage	5 V
Number of Circuits	4 Circuit
Number of Positions	10 Position
Power Dissipation	450 W
Clamping Voltage	11 V
Peak Pulse Power	450 W
Min Breakdown Voltage	5 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	2.6 mm
Size-Width	1.6 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
