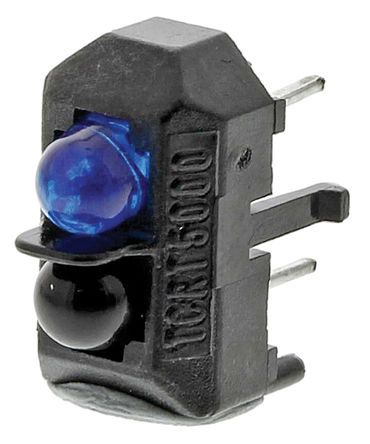

Image is for your reference only,please check specifications for details
- TCRT5000 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC766596
-
Category:Optocoupler, Optoisolator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:950nm 60mA Through Hole Reflective Optical Sensor with Transistor Output
-
Stock Locations:
-
Availability:1,652 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.59
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 950 nm 60 mA Through Hole Reflective Optical Sensor with Transistor Output
TCRT5000 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | PCB Mount |
| Voltage Rating (DC) | 70.0 V |
| Output Voltage | 70.0 V, 70.0 V (max) |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.25 V |
| Wavelength | 950 nm |
| Input Current | 60.0 mA |
| Power Dissipation | 200 mW |
| Breakdown Voltage (Collector to Emitter) | 70 V |
| Forward Current | 60 mA |
| Reverse Breakdown Voltage | 5 V |
| Forward Current (Max) | 60 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Size-Length | 10.2 mm |
| Size-Height | 7 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
