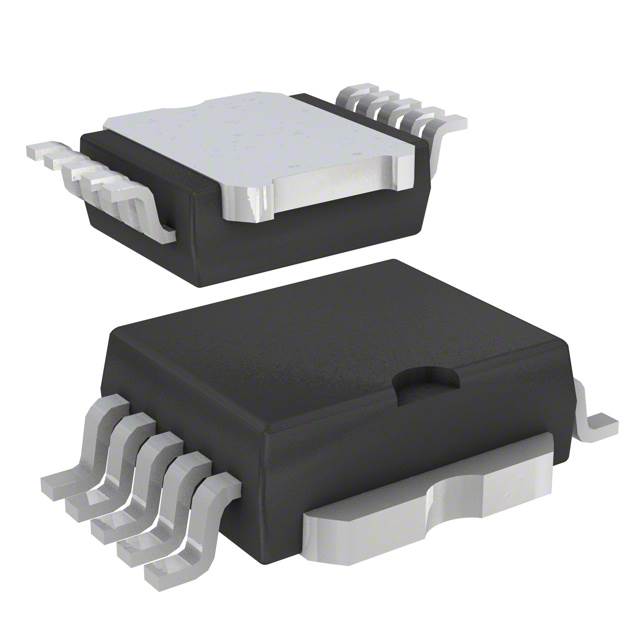

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

VN340SP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	PowerSO-10
Supply Voltage (DC)	36.0V (max)
Number of Outputs	4 Output
Output Current	0.7 A
Supply Current	6 mA
Number of Channels	4 Channel
Drain to Source Resistance (on) (Rds)	400 mΩ
Rise Time	250000 ns
Output Current (Max)	700 mA
Fall Time	20000 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	25 ℃
	Show
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
