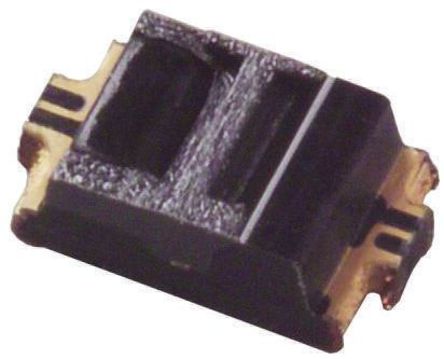

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The GP2S60 is a Compact Reflective Photointerrupter with emitter and detector facing the same direction in a moulding that provides noncontact sensing. The compact series is a result of unique technology, combing transfer and injection moulding, that also blocks visible light to minimize false detection. The photointerrupter is suitable for reflow soldering.
- Reflective with phototransistor output
GP2S60 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SMD-4 |
| Output Voltage | 35.0 V |
| Output Current | ≤20.0 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 4 Position |
| Forward Voltage | 1.2 V |
| Wavelength | 950 nm |
| Input Current | 20.0 mA |
| Peak Wavelength | 930 nm |
| Power Dissipation | 100 mW |
| Rise Time | 20 µs |
| Breakdown Voltage (Collector to Emitter) | 35 V |
| Forward Current | 50 mA |
| Reverse Breakdown Voltage | 6 V |
| Forward Current (Max) | 50 mA |
| Fall Time | 20 µs |
| Fall Time (Max) | 100000 ns |
| Fall Time (Max) | 100000 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 100 mW |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 1.7 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
