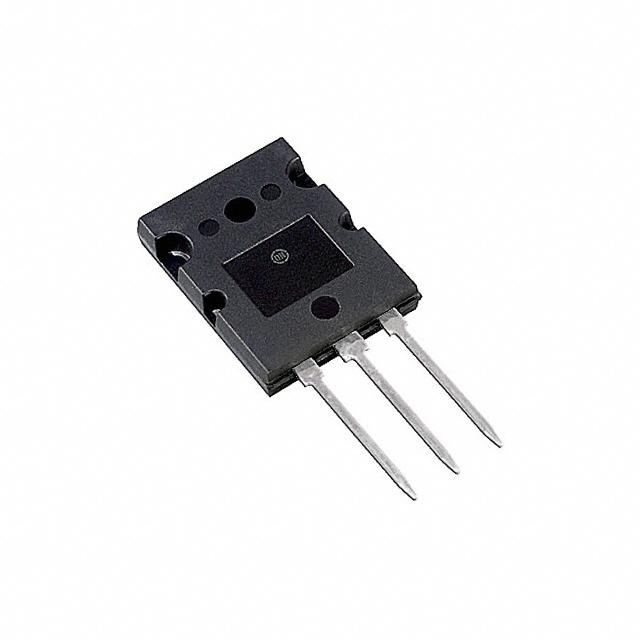

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

MJL4281A (NPN)
MJL4302A (PNP)
15 AMPERES COMPLEMENTARY SILICON POWER TRANSISTORS 350 VOLTS, 230 WATTS
The MJL4281A and MJL4302A are PowerBasepower transistors for high power audio.
Features
•350 V Collector−Emitter Sustaining Voltage
•Gain Complementary:
Gain Linearity from 100 mA to 5 A
High Gain − 80 to 240
hFE= 50 (min) @ IC= 8 A
•Low Harmonic Distortion
•High Safe Operation Area − 1.0 A/100 V @ 1 Second
•High fT
•Pb−Free Packages are Available

Show

MJL4281A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-264-3
Voltage Rating (DC)	350 V
Current Rating	15.0 A
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	350 V
Continuous Collector Current	15A
hFE Min	80 @5A, 5V
Input Power (Max)	230 W
	Show
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
