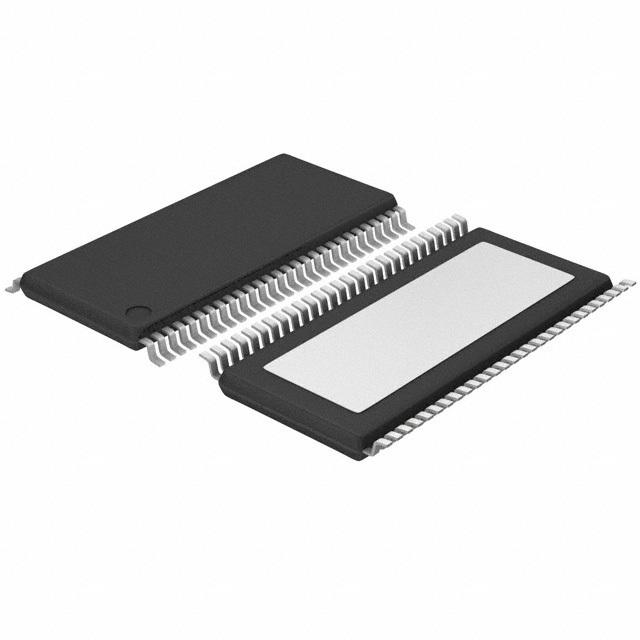

Image is for your reference only,please check specifications for details
- TLC5955DCAR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC24182996
-
Category:LED Driver, LED Display Driver
-
Package:HTSSOP-56
-
Datasheet:Datasheet 3D Model
-
Description:48CH, 16Bit PWM LED Driver with Dot-Correction, Brightness Control, Open/Short Detection 56-HTSSOP -40℃ to 85℃
-
Stock Locations:
-
Availability:232 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.35
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLC5955 is a 48-channel, constant-current sink driver. Each channel has an individually-adjustable, pulse width modulation (PWM), grayscale (GS) brightness control with 65,536 steps and 128 steps of constant-current dot correction (DC). DC adjusts brightness deviation between channels. All channels have a 128-step global brightness control (BC). BC adjusts brightness deviation between the R, G, B color group. The eight-step maximum current control (MC) selects the maximum output current range for all channels of each color group. GS, DC, BC, and MC data are accessible with a serial interface port.
- The TLC5955 has two error flags: LED open detection (LOD) and LED short detection (LSD). The error detection results can be read with a serial interface port.
TLC5955DCAR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 56 Pin |
| Case/Package | HTSSOP-56 |
| Number of Outputs | 48 Output |
| Output Voltage | 10 V |
| Supply Current | 29000 mA |
| Number of Channels | 48 Channel |
| Input Voltage (DC Max) | 5.5 V |
| Input Voltage (DC Min) | 3 v |
| Output Voltage (Max) | 10 V |
| Output Current (Max) | 0.0347 A |
| Output Current (Min) | 0.0174 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
