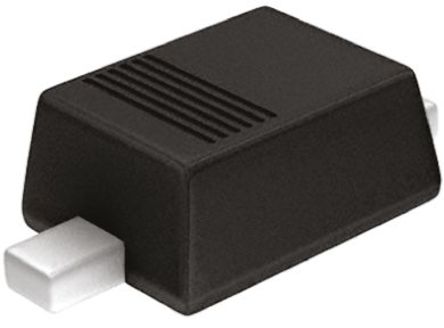

BAT46WJ - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC34349417
Category:
Schottky Diode
Package:
SOD-323
Datasheet:
Datasheet 3D Model
Description:
NXP BAT46WJ Small Signal Schottky Diode, Single, 100V, 250mA, 850mV, 2.5A, 150℃
Stock Locations:
Availability:
2,761 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.62

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAT46WJ is a single planar Schottky Barrier Diode with an integrated guard ring for stress protection, low forward voltage and low capacitance.
4µA Reverse current

Show

BAT46WJ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Number of Positions	2 Position
Forward Current	250 mA
Max Forward Surge Current (Ifsm)	2.5 A
Maximum Forward Voltage (Max)	850 mV
Forward Current (Max)	250 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	1.8 mm
Size-Width	1.35 mm
Size-Height	0.8 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
