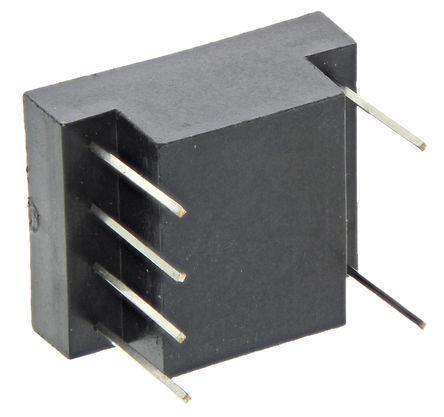

77208C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC38355246
Category:
Transformer
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Pulse Transformer 1:1:1 2500Vrms 3.6Ω Prim. DCR 3.1Ω/4.2Ω Sec. DCR 40pF 482Vus Through Hole
Stock Locations:
Availability:
327 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.54

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 77208C is a PCB-mount Pulse Transformer intended for medium power applications in switch mode power supplies and thyristor/triac firing. The standard turns ratios may be modified on any transformer with three windings by connecting any two windings in series.
UL94V-0 package materials
Backward compatible with Sn/Pb soldering systems
0 to 70°C Operating free air temperature range

Show

77208C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP
Capacitance	40 pF
Flammability Rating	UL 94 V-0
Inductance	16.3 mH
Isolation Voltage	2.5 kV
DC Resistance (DCR)	3.6 Ω
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
	Show
Size-Length	25.4 mm
Size-Width	20.3 mm
Size-Height	12.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
