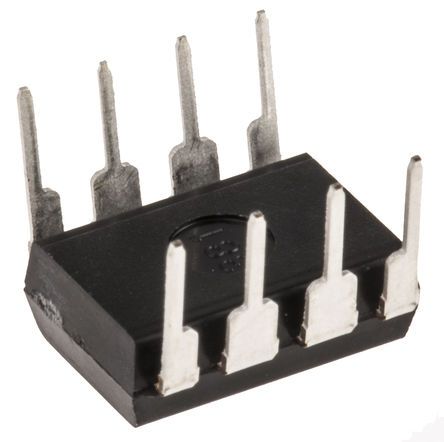

- HCPL3700 - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC20812637
-
Category:Optocoupler, Optoisolator
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler AC-DC-IN 1CH Darlington With Base DC-OUT 8Pin PDIP Black Tube
-
Stock Locations:
-
Availability:56 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.42
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The HCPL-3700 voltage/current threshold detection optocoupler consists of an AlGaAs LED connected to a threshold sensing input buffer IC which are optically coupled to a high gain darlington output. The input buffer chip is capable of controlling threshold levels over a wide range of input voltages with a single resistor. The output is TTL and CMOS compatible.
- Features
- ---
- |
- AC or DC input
- Programmable sense voltage
- Logic level compatibility
- Threshold guaranteed over temperature (0°C to 70°C)
- Optoplanar. construction for high common mode immunity
- UL recognized (file # E90700)
HCPL3700 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Rise/Fall Time | 45µs, 0.5µs |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Input Current | 50 mA |
| Rise Time | 45 µs |
| Isolation Voltage | 2500 Vrms |
| Output Voltage (Max) | 20 V |
| Input Current (Min) | 4.4 mA |
| Maximum Forward Voltage (Max) | 0.65 V |
| Fall Time | 0.5 µs |
| Power Dissipation (Max) | 210 mW |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
