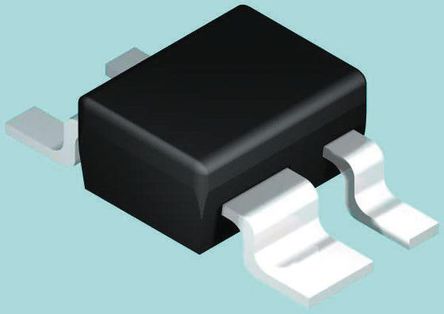

Image is for your reference only,please check specifications for details
- STM6315SDW13F - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC3576326
-
Category:Power Monitor
-
Package:TO-253-4
-
Datasheet:Datasheet 3D Model
-
Description:Processor Supervisor 2.93V 1V to 5.5V 4Pin SOT-143 T/R
-
Stock Locations:
-
Availability:9,888 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.28
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- By using this STM6315SDW13F microprocessor supervisory circuit from STMicroelectronics you won"t have to worry if something happens to your main processor. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 2.93 V, with a minimum of 2.87 V and a maximum of 2.98 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C.
STM6315SDW13F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | TO-253-4 |
| Supply Voltage (DC) | 5.50V (max) |
| Supply Current | 0.015 mA |
| Number of Positions | 4 Position |
| Power Dissipation | 0.32 W |
| Threshold Voltage | 2.93 V |
| Reset Threshold Voltage (Min) | 2.87 V |
| Reset Threshold Voltage (Max) | 2.98 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 320 mW |
| Supply Voltage | 5.5 V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1 V |
| Show | |
| Size-Length | 3.04 mm |
| Size-Width | 1.4 mm |
| Size-Height | 1.02 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
