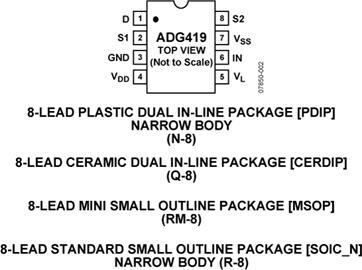

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The ADG419 is a monolithic CMOS SPDT switch. This switch is designed on an enhanced LC2MOS process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents.
- The on resistance profile of the ADG419 is very flat over the full analog input range, ensuring excellent linearity and low distortion. The part also exhibits high switching speed and high signal bandwidth. CMOS construction ensures ultralow power dissipation, making the parts ideally suited for portable and battery-powered instruments.
- Each switch of the ADG419 conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. The ADG419 exhibits break-before-make switching action.
- The ADG419-EP supports defense and aerospace applications (AQEC)
- **Applications**
- Precision test equipment
- Precision instrumentation
- Battery-powered systems
- Sample-and-hold systems
- ### Features and Benefits
- 44 V supply maximum ratings
- VSS to VDD analog signal range
- Low on resistance: <35 Ω
- Ultralow power dissipation: < 35 μW
- Fast transition time: 160 ns maximum
- Break-before-make switching action
- Plug-in replacement for DG419
- ADG419-EP supports defense and aerospace applications (AQEC standard)
- Download ADG419-EP data sheet (pdf)
- Military temperature range:
- −55°C to +125°C
- Controlled manufacturing baseline
- One assembly/test site
- One fabrication site
- Enhanced product change notification
- Qualification data available on request
- V62/10615 DSCC Drawing Number
ADG419 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Unknown |
