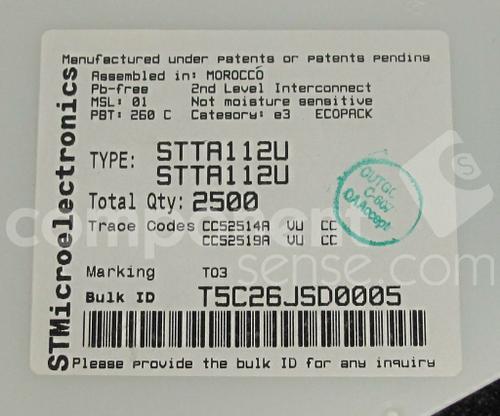

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Diode Standard 1200V 1A Surface Mount SMB
STTA112U Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AA |
| Voltage Rating (DC) | 1.20 kV |
| Current Rating | 1.00 A |
| Output Current | ≤1.00 A |
| Forward Voltage | 1.65V @1A |
| Polarity | Standard |
| Reverse recovery time | 115 ns |
| Maximum Forward Voltage (Max) | 1.65V @1A |
| Forward Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | 125℃ (Max) |
| Power Dissipation (Max) | 1500 mW |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
