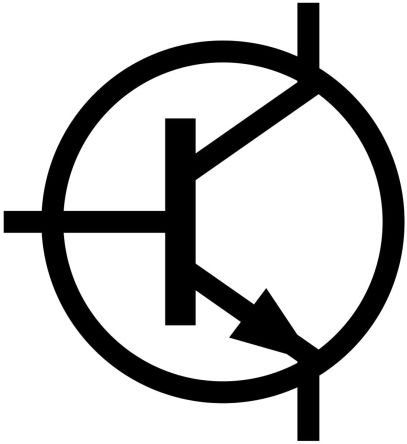

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KSC3503DSTU is a NPN Epitaxial Silicon Transistor offers 300V low base voltage and 100A collector current. It is suitable for voltage amplifier, current source, CRT display and video output applications.
High voltage
1.8pF at 30V VCB Low reverse transfer capacitance
Excellent gain linearity for low THD
150MHz High frequency
Complementary to KSC1381

Show

KSC3503DSTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-126-3
Frequency	150 MHz
Number of Positions	3 Position
Power Dissipation	7 W
Breakdown Voltage (Collector to Emitter)	300 V
hFE Min	40 @10mA, 10V
Input Power (Max)	7 W
DC Current Gain (hFE)	60
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	7000 mW
	Show
Size-Length	8 mm
Size-Width	3.25 mm
Size-Height	11 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99
