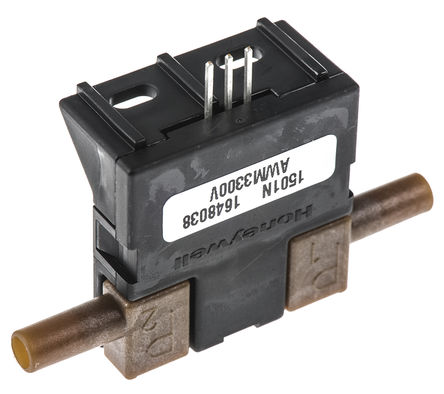

Image is for your reference only,please check specifications for details

AWM3300V - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC765069
Category:
Flow Sensor
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Dry Gas 15V dc Sensor/Switch without Indicator, 25psi Pressure, +/-1000 sccm
Stock Locations:
Availability:
255 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 62.13

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AWM3300V from Honeywell is a microbridge mass air flow/amplified sensor. The microbridge structure provides a sensitive and fast response to the flow and direction of air or other gas over the chip and provides a proportional output voltage. This is an amplifed version that can be used to increase the gain and to introduce voltage offsets to the sensor output. The on-board heater control circuit are also available. Typical applications include damper control for heating, ventilation and air conditioning systems, gas analyzers, low vacuum control, process control, medical respirators and ventilators, oxygen concentrators, leak detection equipment, vent hoods, anesthesia control, gas metering, gas chromatography.
Laser trimmed for improved sensor interchangeability
Flow sensing up to 1000sccm
Mass flow and differential pressure sensing
Output voltage at trim point 5.0VDC at 1000sccm
Null voltage is 1VDC
Maximum power consumption is 60mW
Response time is 3msec
Common mode pressure is 25psi
Operating temperature range from -25°C to 85°C
Supply voltage range from 8VDC to 15VDC
Microbridge mass airflow sensors are not designed to sense liquid flow and will be damaged by liquid flow through the sensor.

Show

AWM3300V Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	3 Pin
Case/Package	-
Supply Voltage (DC)	10.0 V
Output Voltage	5 V
Power Consumption	60.0 mW
Output Voltage (Max)	5 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	15 VDC
Input Voltage	8V ~ 15V
	Show
Size-Height	31.5 mm
Material	Plastic
Weight	10.8 g
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	9026802000
ECCN Code	EAR99
