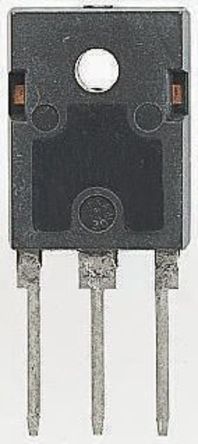

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STTH3003CW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	300 V
Current Rating	30.0 A
Load Current	30 A
Forward Voltage	1.25V @15A
Thermal Resistance	2 ℃/W
Reverse recovery time	40 ns
Forward Current	30000 mA
Max Forward Surge Current (Ifsm)	140 A
Maximum Forward Voltage (Max)	1.25V @15A
Forward Current (Max)	30 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
