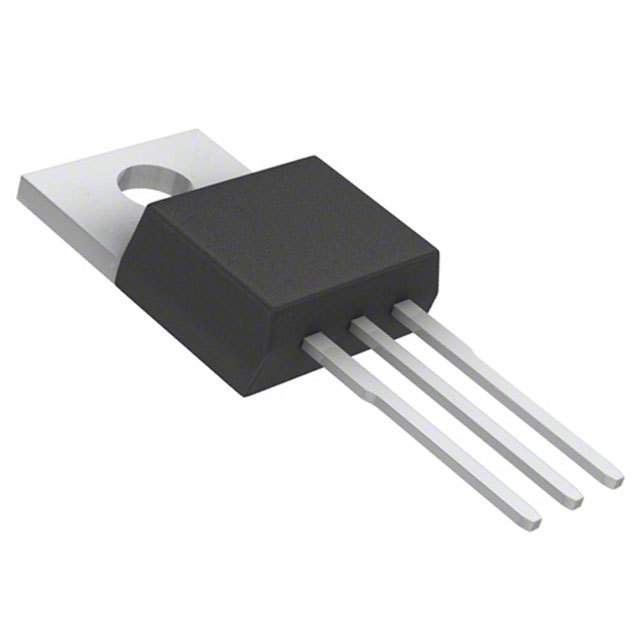

FQP13N50C - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC73319127
Category:
MOSFET, MOSFET Transistor
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
Power Field-Effect Transistor, 13A I(D), 500V, 0.48Ω, 1Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3Pin
Stock Locations:
Availability:
1,803 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.82

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency switched mode power supplies, active power factor correction, electronic lamp ballasts
based on half bridge topology.
Features
• 13A, 500V, RDS(on)= 0.48Ω@VGS= 10 V
• Low gate charge ( typical 43 nC)
• Low Crss ( typical 20pF)
• Fast switching
• 100% avalanche tested
• Improved dv/dt capability

Show

FQP13N50C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	500 V
Current Rating	13.0 A
Drain to Source Resistance (on) (Rds)	480 mΩ
Polarity	N-Channel
Power Dissipation	195 W
Drain to Source Voltage (Vds)	500 V
Breakdown Voltage (Drain to Source)	500 V
Breakdown Voltage (Gate to Source)	±30.0 V
Continuous Drain Current (Ids)	13.0 A
Rise Time	100 ns
Input Capacitance (Ciss)	2055pF @25V(Vds)
Input Power (Max)	195 W
Fall Time	100 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	195W (Tc)
	Show
Size-Length	10.67 mm
Size-Width	4.7 mm
Size-Height	16.3 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
