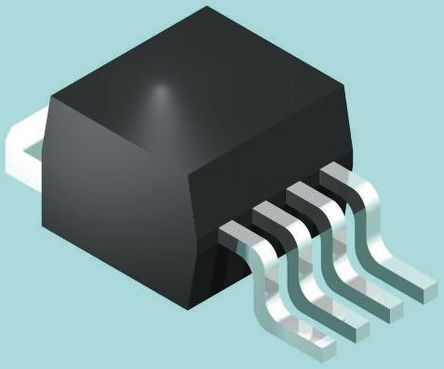

ESDALC6V1W5 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC1658222
Category:
TVS Diode
Package:
SOT-323-5
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS ESDALC6V1W5 ESD Protection Device, SOT-323, 5Pins, 6.1V, 25W
Stock Locations:
Availability:
1,513 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.18

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Never worry about unpredictable voltage shocks again with this ESDALC6V1W5 ESD protection device from STMicroelectronics. This ESD diode has a maximum ESD protection device voltage of 15@Air Gap/8@Contact Disc/25@HBM kV. This ESD diode has an operating temperature range of -55 °C to 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It is made in a quad common anode configuration. Its capacitance value is 7.5(Typ) pF.

Show

ESDALC6V1W5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-323-5
Voltage Rating (DC)	6.10 V
Operating Voltage	6.1 V
Capacitance	7.5 pF
Power Rating	25.0 W
Breakdown Voltage	7.20 V
Number of Circuits	4 Circuit
Number of Positions	5 Position
Power Dissipation	25 W
Test Current	1 mA
Peak Pulse Power	25 W
Min Breakdown Voltage	6.1 V
Reverse Breakdown Voltage	6.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
