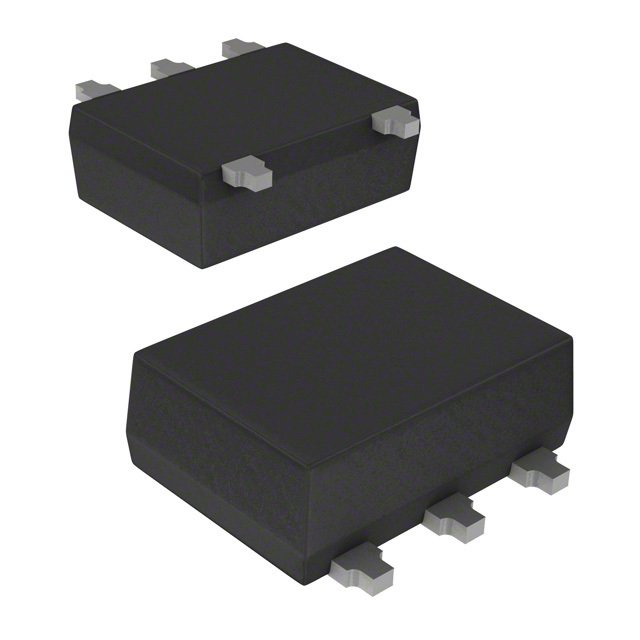

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ESDALC6V1P5 is a low capacitance Transil™ Array for ESD protection. It is monolithic suppressors designed to protect components connected to data and transmission lines against ESD. The device clamps the voltage just above the logic level supply for positive transients and to a diode drop below ground for negative transients.
4 Unidirectional Transil functions
<100nA Low leakage current
7.5pF at 3V Low capacitance
High ESD protection level
High integration
-40 to 150°C Operating temperature range

Show

ESDALC6V1P5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-665
Voltage Rating (DC)	6.10 V
Capacitance	7.5 pF
Power Rating	30.0 W
Breakdown Voltage	6.10 V
Number of Circuits	4 Circuit
Number of Positions	5 Position
Power Dissipation	30 W
Test Current	1 mA
Max Breakdown Voltage	7.2 V
Peak Pulse Power	30 W
Min Breakdown Voltage	6.1 V
Reverse Breakdown Voltage	6.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	1.70 mm
Size-Width	1.30 mm
Size-Height	0.6 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
