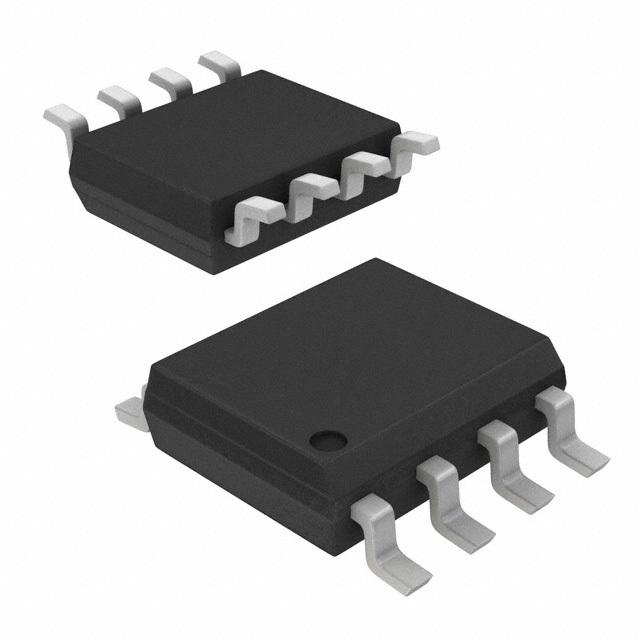

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The AO4435 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating. This device is suitable for use as a load switch or in PWM applications.
-RoHS Compliant
-AO4435 is Halogen Free
Product Summary
VDS = -30V
ID = -10.5A (VGS = -20V)
RDS(ON) < 14mΩ (VGS = -20V)
RDS(ON) < 18mΩ (VGS = -10V)
RDS(ON) < 36mΩ (VGS = -5V)
100% UIS Tested
100% Rg Tested

Show

AO4435 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	2 W
Polarity	P-CH
Power Dissipation	3.1 W
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	10.5A
Rise Time	8.5 ns
Input Capacitance (Ciss)	1400pF @15V(Vds)
Input Power (Max)	3.1 W
Fall Time	7 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3.1W (Ta)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
