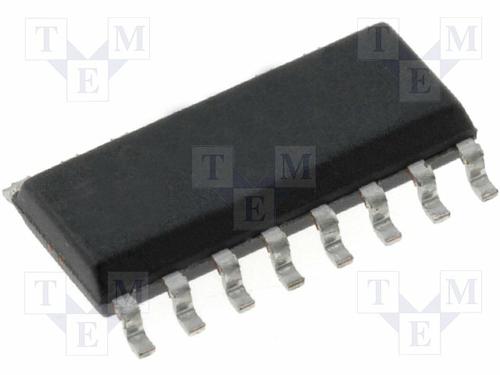

Image is for your reference only,please check specifications for details

74HC165D - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC7418769
Category:
Shift Register IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
IC HC/UH SERIES, 8Bit RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, PDSO16, 3.9MM, PLASTIC, MS-012, SOT-109-1, SOP-16, Shift Register
Stock Locations:
Availability:
10,450 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.07

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HC165D is a 8bit parallel in/serial out shift register with complementary serial outputs in 16 pin SOIC package. This high speed Si-gate CMOS device comply with JEDEC JEDSD 7A. The 74HC165D is pin compatible with low power schottky TTL (LSTTL). When parallel load input is LOW, parallel data from the D0 to D7 inputs are loaded into register asynchronously. When parallel load input is high, data enters the register serially at DS input and shifts one place to the right with each positive going clock transition. This feature allows parallel to serial converter expansion by tying Q7 output to DS input of succeeding stage. The clock input is a gated OR structure which allows one input to be used as an active low clock enable input. The low to high transition of clock enable input should only take place while clock input is high for predictable operation.
Supply voltage range from 2V to 6V
Synchronous serial input
Asynchronous 8bit parallel load
Features ESD protection
Ambient temperature range from -40°C to 125°C

Show

74HC165D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	56.0 MHz
Supply Voltage (DC)	5.00 V
Number of Positions	16 Position
Number of Bits	8 Bit
Number of Gates	1 Gate
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
