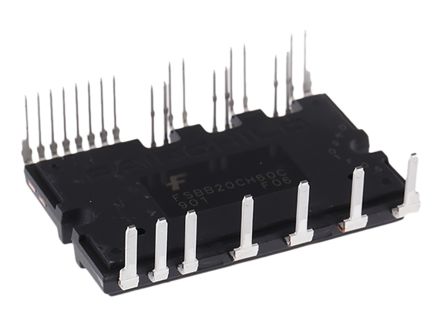

FSBB20CH60C - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC6411786
Category:
IGBT Transistor, IGBT Module
Package:
SPM27-CC
Datasheet:
Datasheet 3D Model
Description:
FSBB20CH60BT Series 600V 20A 3-Phase IGBT Smart Power Module - SPM-27CC
Stock Locations:
Availability:
65 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.74

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

FSBB20CH60C is an advacned Motion SPM 3 series that Fairchild has newly developed to provide a very compact and high performance inverter solution for AC motor drives in low-power applications such as air conditioners. It combines optimized circuit protections and drives matched to low-loss IGBTs. The system reliability is further enhanced by the integrated under-voltage lock-out and over-current protection. The high speed built-in HVIC provides optocoupler- less single-supply IGBT gate driving capability that further reduces the overall size of the inverter system. Each phase leg current of the inverter can be monitored thanks to three separate negative dc terminals.
Features
---
|
Very low thermal resistance by using Al2O3 DBC
Easy PCB layout thanks to built in bootstrap diodes
600V-20A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
Three separate negative DC-link terminals for inverter current sensing applications
Single-grounded power supply for built-in HVICs
Isolation rating of 2500Vrms/min..
