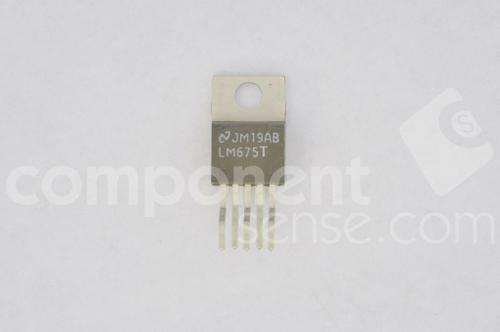

Image is for your reference only,please check specifications for details

LM675T - TI
Manufacturer:
TI
ManyChip's Part#:
MC8962910
Category:
Operational Amplifier, OP Amp IC
Package:
TO-220-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM675T Operational Amplifier, Single, 1 Amplifier, 70kHz, 8V/µs, 10V to 60V, TO-220, 5Pins
Stock Locations:
Availability:
296 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.88

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Commonly used in nearly all electronics today, this general purpose amplifier LM675T OP amp from Texas Instruments produces a large amount of gain. Its maximum power dissipation is 30000 mW. Its typical dual supply voltage is ±9|±12|±15|±18|±24|±28 V, with a minimum of ±8 V and maximum of ±30 V. This op amp has a minimum operating temperature of 0 °C and a maximum of 70 °C. It has a single channel per chip. This device uses one or two power supplies. This device is made with bipolar technology.

Show

LM675T Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Supply Voltage (DC)	25.0 V
Output Current	4.00 A
Supply Current	18 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Power Dissipation	30 W
Common Mode Rejection Ratio	70 dB
Input Offset Drift	25.0 µV/K
Bandwidth	70 kHz
Slew Rate	8.00 V/μs
Gain Bandwidth Product	5.5 MHz
Input Offset Voltage	1 mV
Input Bias Current	200 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	5.5 MHz
Power Dissipation (Max)	30000 mW
Minimum CMRR Range	70 dB
Supply Voltage	10V ~ 60V
	Show
Size-Height	8.64 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
