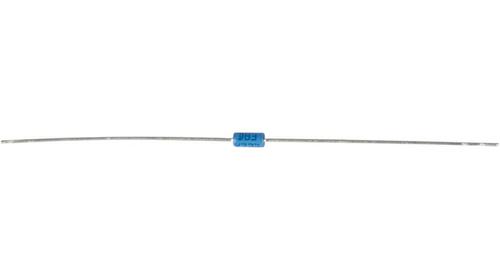

BAT47 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-35
Voltage Rating (DC)	20.0 V
Current Rating	350 mA
Capacitance	20.0 pF
Output Current	≤350 mA
Number of Positions	2 Position
Forward Voltage	1V @300mA
Polarity	Standard
Thermal Resistance	300℃/W (RθJA)
Reverse recovery time	10 ns
Forward Current	350 mA
Max Forward Surge Current (Ifsm)	7.5 A
Maximum Forward Voltage (Max)	1V @300mA
Forward Current (Max)	0.35 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	330 mW
	Show
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
