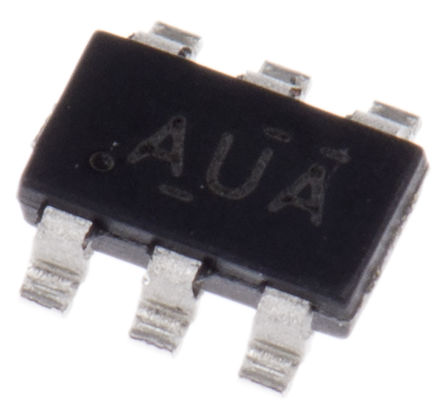

TPS27081ADDCR - TI
Manufacturer:
TI
ManyChip's Part#:
MC419096
Category:
Power Distribution
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
1.2V - 8V, 3A PFET High Side Load Switch w/ Level Shift & Adj Slew Rate Control 6-SOT -40℃ to 85℃
Stock Locations:
Availability:
2752 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.19

Updated at 13/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS27081ADDCR is a high-side Load Switch features industry-standard ESD protection on all pins providing better ESD compatibility with other on board components. The TPS27081A level shifts ON/OFF logic signal to VIN levels and supports as low as 1-V CPU or MCU logic to control higher voltage power supplies without requiring an external level-shifter. Switching a large value output capacitor CL through a fast ON/OFF logic signal may result in an excessive inrush current. To control the load inrush current, connect a resistor R2 and add an external capacitor C1 as shown in the Simplified Schematic. To configure the TPS27081A to achieve a specific slew rate, refer to the Application and Implementation section. A single pull-up resistor R1 is required in standby power switch applications. In such applications connect the R2 pin of the TPS27081A to the system ground when inrush current control is not required.
Adjustable turn-on and turnoff slew rate control through external R1, R2 and C1
Supports a wide range of 1.2 to 8V supply inputs
Integrated NMOS for PFET control
Full ESD protection (all pins)
Low ON-resistance, high-current PFET
Ultralow leakage current in standby (typical 100nA)

Show

TPS27081ADDCR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Number of Outputs	1 Output
Input Voltage (DC)	8.00 V
Output Current	3 A
Number of Channels	1 Channel
Number of Positions	6 Position
Power Dissipation	1.19 W
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1190 mW
Input Voltage	8 V
	Show
Size-Length	3.02 mm
Size-Width	1.75 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
