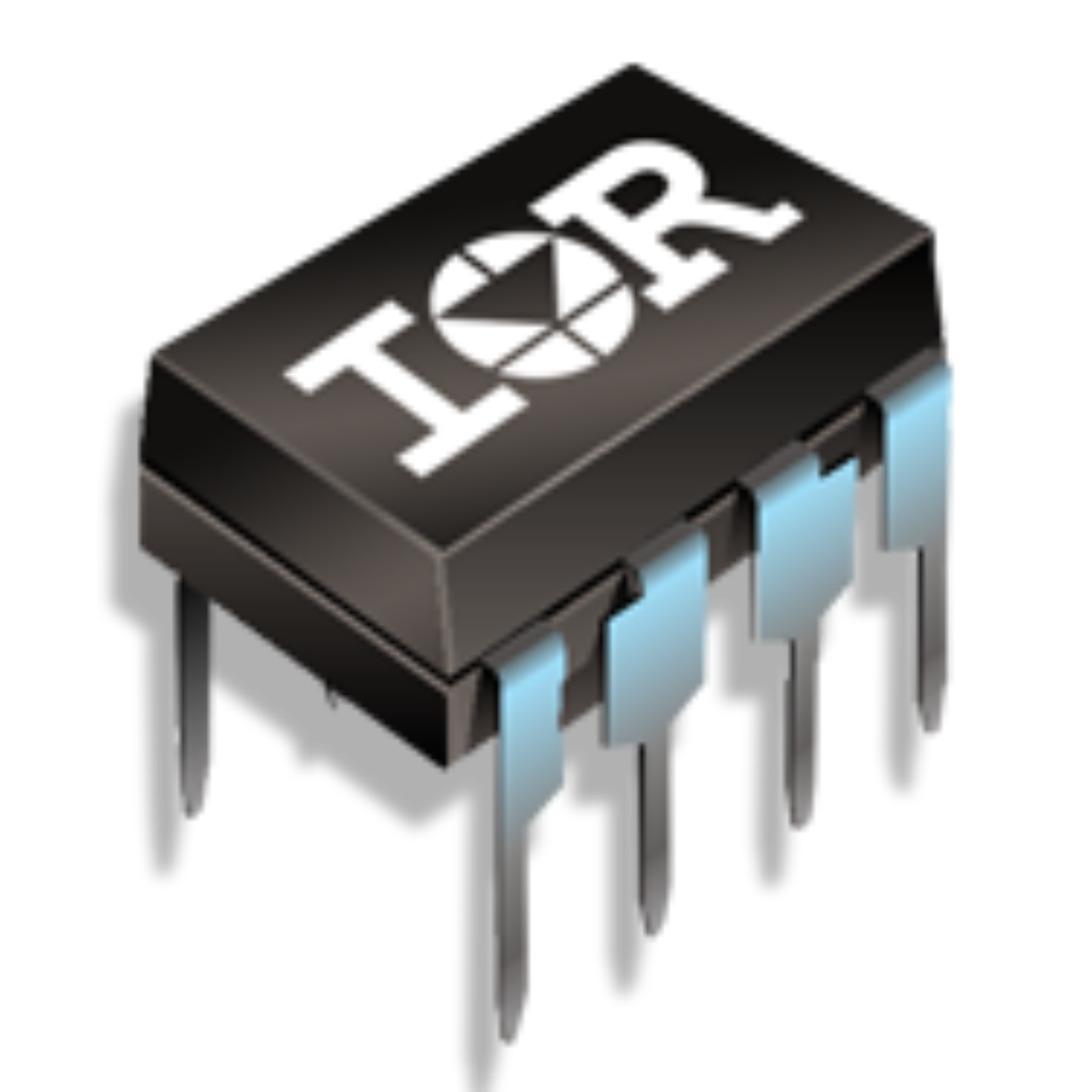

Image is for your reference only,please check specifications for details
- IRS2011 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC429179837
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:200V High and Low Side Driver IC with typical 1A source and 1A sink currents in 8 Lead PDIP package for IGBTs and MOSFETs. Also available in 8 Lead SOIC.
-
Stock Locations:
-
Availability:303 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 03/05/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Floating gate driver designed for bootstrap operation
- Fully operational to +200 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 V to 20 V
- Independent low-side and high-side channels
- Input logic HIN/LIN active high
- Undervoltage lockout for both channels
- 3.3 V and 5 V input logic compatible
- CMOS Schmitt-triggered inputs with pull-down
- Matched propagation delay for both channels
IRS2011 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | PDIP-8 |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
