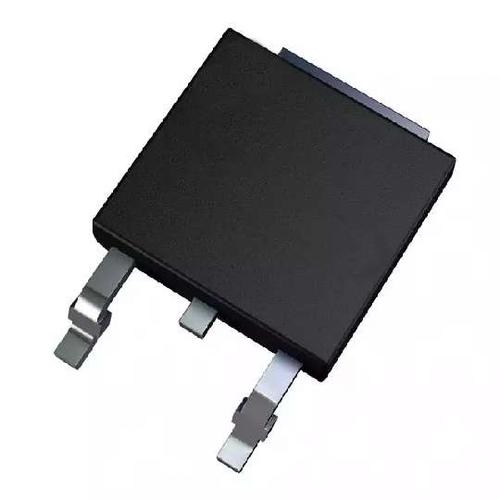

Image is for your reference only,please check specifications for details

TLV1117CKVURG3 - TI
Manufacturer:
TI
ManyChip's Part#:
MC14543440
Category:
Voltage Regulator
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLV1117CKVURG3 LDO Voltage Regulator, Adjustable, 2.7V to 15V in, 1.2V drop, 1.25V to 13.7V/0.8A out, TO-252-3
Stock Locations:
Availability:
265 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.35

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
The TLV1117 is a positive low-dropout voltage regulator, designed to provide up to 800 mA of output current. The device is available in 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V, and adjustable output voltage options. All internal circuitry is designed to operate down to 1-V input-to-output differential. Dropout voltage is specified at a maximum of 1.3 V at 800 mA, decreasing at lower load currents. 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V, and Adjustable
Output Voltage Options
Output Current of 800 mA
Operates Down to 1.1-V Dropout
Specified Dropout Voltage at Multiple Current Levels
0.2% Line Regulation Maximum
0.4% Load Regulation Maximum

Show

TLV1117CKVURG3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Outputs	1 Output
Input Voltage (DC)	15.0V (max)
Output Voltage	1.25V ~ 13.7V
Output Current	800 mA
Supply Current	10 mA
Number of Positions	3 Position
Quiescent Current	1.70 mA
Output Capacitor Type	Tantalum
voltage rating	1.2 V
Number of Regulated Outputs	1 Output
Input Voltage (Max)	15 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	13.7 V
Output Voltage (Min)	1.25 V
Output Current (Max)	0.8 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	2.7V ~ 15V
	Show
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
