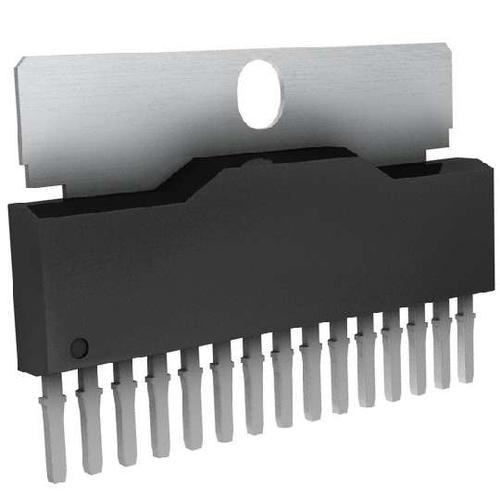

- BA5417 - ROHM Semiconductor
-
Manufacturer:ROHM Semiconductor
-
ManyChip's Part#:MC754663
-
Category:Audio Amplifier IC
-
Package:SIP-15
-
Datasheet:Datasheet 3D Model
-
Description:ROHM BA5417 Audio Power Amplifier, 2Channel, 5W, 6V to 15V, SIP, 15Pins
-
Stock Locations:
-
Availability:4,094 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.8
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BA5417 is a Dual OTL Monolithic Power IC with two built-in, high output speaker amplifier circuits. High output of 5W x 2 can be produced when VCC=12V and RL=3R and 2.8W x 2 when VCC=9V and RL=3R. This device not only exceeds basic characteristics, but also has a built-in soft clip circuit, thermal shutdown and standby circuits.
- Small pop noise when standby switches ON/OFF
- Built-in circuit to prevent ripple addition when motor starts
- Built-in thermal shutdown circuit
- Built-in standby switch circuit
- Built-in soft clip circuit
BA5417 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 15 Pin |
| Case/Package | SIP-15 |
| Number of Circuits | 1 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 15 Position |
| Power Dissipation | 15 W |
| Quiescent Current | 22.0 mA |
| Output Power | 5 W |
| Gain | 45 dB |
| Operating Temperature (Max) | 75 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Power Dissipation (Max) | 15000 mW |
| Supply Voltage | 6V ~ 15V |
| Supply Voltage (Max) | 15 V |
| Supply Voltage (Min) | 6 V |
| Show | |
| Size-Width | 3 mm |
| Operating Temperature | -20℃ ~ 75℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HK STC License | NLR |
