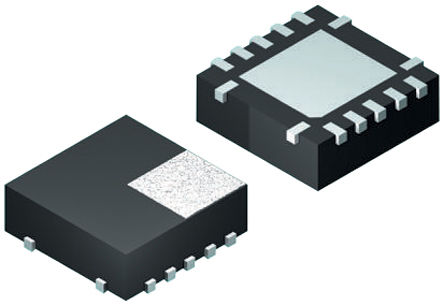

Image is for your reference only,please check specifications for details

TPS630250RNCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC8962529
Category:
DC to DC Converter
Package:
VQFN-14
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.3V to 5.5V Step Down/Step Up Single-Out 2.3V to 3.6V 2A 14Pin VQFN T/R
Stock Locations:
Availability:
228 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.32

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS630250RNCT is a high-efficiency Buck-boost Converter suitable for application where the input voltage is higher or lower than the output. Output currents can go as high as 2A in boost mode and as high as 4A in buck mode. The maximum average current in the switches is limited to a typical value of 4A. It regulates the output voltage over the complete input voltage range by automatically switching between buck or boost mode depending on the input voltage ensuring a seamless transition between modes. The buck-boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain highest efficiency. At low load currents, the converter enters power save mode to maintain high efficiency over the complete load current range. There is a PFM/PWM pin that allows the user to choose between automatic PFM/PWM mode operation and forced PWM operation. During PWM mode a fixed-frequency of typically 2.5MHz is used.
Adjustable and fixed output voltage
Integrated soft-start function
Power save mode
True shutdown function
Output capacitor discharge function
Over-temperature protection and overcurrent protection
Efficiency up to 95% in buck or boost mode and up to 97% when VIN=VOUT
35µA Operating quiescent current
Green product and no Sb/Br

Show

TPS630250RNCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	VQFN-14
Number of Outputs	1 Output
Output Voltage	2.3V ~ 3.6V
Output Current	2 A
Number of Positions	14 Position
Quiescent Current	35.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2.5 MHz
Switching Current	4.5 A
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.3 V
Output Voltage (Max)	3.6 V
Output Voltage (Min)	2.3 V
Output Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Min)	2.3 V
Input Voltage	2.3V ~ 5.5V
	Show
Size-Length	2.6 mm
Size-Width	3.1 mm
Size-Height	0.92 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
