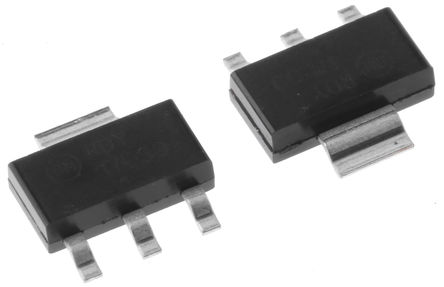

Image is for your reference only,please check specifications for details

NCP1117LPST33T3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC5701741
Category:
Voltage Regulator
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP1117LPST33T3G Fixed LDO Voltage Regulator, 18V in, 1.3V Dropout, 3.3V/1A out, SOT-223-3
Stock Locations:
Availability:
14,933 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.18

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Keep calm and stay stable by implementing this LDO NCP1117LPST33T3G linear regulator developed by ON Semiconductor. Its typical dropout voltage at current is 1.3@1A V. This voltage regulation device"s single output can produce a current up to 1(Typ) A. It only needs a voltage of at least -0.3 V while not exceeding 18 V to effectively power your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 33mV and line regulation of 0.2%. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. The maximum dropout voltage is 1.4@1A V. This voltage regulation device has an operating temperature range of 0 °C to 125 °C. Its polarity is positive.

Show

NCP1117LPST33T3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	1 A
Supply Current	700 µA
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	700 µA
voltage rating	1.3 V
Input Voltage (Max)	18 V
Input Voltage (Min)	4.8 V
Output Voltage (Min)	3.3 V
Output Current (Max)	1.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	≤18 V
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.69 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
