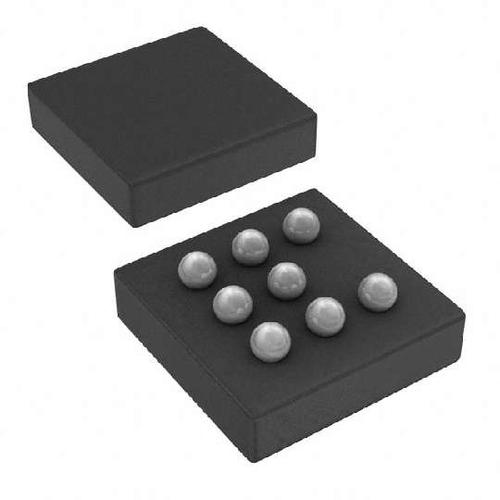

Image is for your reference only,please check specifications for details
- TPA6203A1ZQVR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC51428535
-
Category:Audio Amplifier IC
-
Package:BGA-8
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 1CH Mono 1.25W Class-AB 8Pin BGA MICROSTAR JUNIOR T/R
-
Stock Locations:
-
Availability:10,321 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.92
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPA6203A1 is a 1.25-W mono fully differential amplifier designed to drive a speaker with at least 8-Ω impedance while consuming less than 37 mm 2 (ZQV package option) total printed-circuit board (PCB) area in most applications. This device operates from 2.5 V to 5.5 V, drawing only 1.7 mA of quiescent supply current. The TPA6203A1 is available in the space-saving 2 mm x 2 mm MicroStar Junior™ BGA package, and the space saving 3 mm x 3 mm QFN (DRB) package.
- FEATURES
- • 1.25 W Into 8 Ω From a 5-V Supply at THD = 1% (Typical)
- • Low Supply Current: 1.7 mA Typical
- • Shutdown Control < 10 µA
- • Only Five External Components
- – Improved PSRR (90 dB) and Wide Supply Voltage (2.5 V to 5.5 V) for Direct Battery Operation
- – Fully Differential Design Reduces RF Rectification
- – Improved CMRR Eliminates Two Input Coupling Capacitors
- – C(BYPASS) Is Optional Due to Fully Differential Design and High PSRR
- • Avaliable in a 2 mm x 2 mm MicroStar Junior ™ BGA Package (GQV, ZQV)
- • Available in 3 mm x 3 mm QFN Package (DRB)
- • Available in an 8-Pin PowerPAD™ MSOP (DGN)
TPA6203A1ZQVR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | BGA-8 |
| Supply Voltage (DC) | 5.50 V |
| Supply Current | 2 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 885 mW |
| Common Mode Rejection Ratio | 70 dB |
| Quiescent Current | 1.70 mA |
| Output Power | 1.25 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 885 mW |
| Minimum CMRR Range | 65 dB |
| Supply Voltage | 2.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.5 V |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 2 mm |
| Size-Height | 0.79 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
