AEV110122 Panasonic - Power Relay - ManyChip Electronics

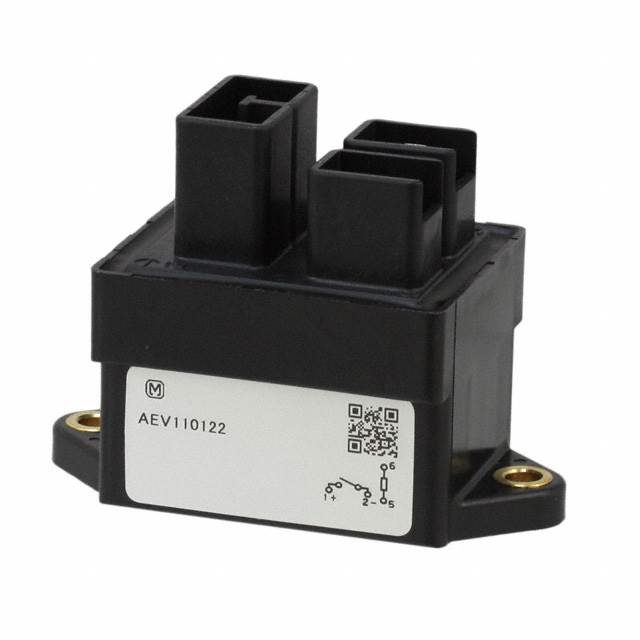

Image is for your reference only,please check specifications for details

AEV110122 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC60641915
Category:
Power Relay
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Электромеханическое реле 12 В пост. тока, 116,5 Ом, 10 А, SPST-NO (однополюсное, нормально разомкнутое), размеры 66,8 мм × 37,9 мм × 49,7 мм, фланцевое компактное автомобильное реле.
Stock Locations:
Availability:
270 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 73.6

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Автомобильное реле серии AEV, 10 А, SPST, 12 В пост. тока, втычное с клеммами Faston.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Quick Connect, Plug In, Chassis
Case/Package	-
Contacts Type	SPST-NO
Contact Current Rating	10 A
Coil Voltage	12 VDC
Coil Current	103 mA
Coil Resistance	116.5 Ω
Current Rating (Max)	10 A
Coil Voltage (DC)	12 V
Coil Power	1.24 W
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	66.8 mm
Size-Width	37.9 mm
Size-Height	49.7 mm
Operating Temperature	-40℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536490075
ECCN Code	EAR99
