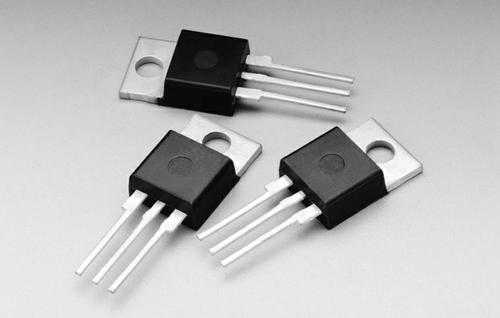

Image is for your reference only,please check specifications for details

D6020L - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC11402603
Category:
TVS Diode
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
Diode Switching 600V 12.7A 3Pin(3+Tab) TO-220AB Isolated Diode Switching 600V 12.7A 3Pin(3+Tab) TO-220AB Isolated
Stock Locations:
Availability:
537 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.15

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The D6020L is a Teccor® Silicon Rectifier feature glass-passivated junctions to ensure long term reliability and stability. In addition, glass offers a rugged, reliable barrier against junction contamination. Isolated mounting tab allows for use in circuits with common anode or common cathode connections. 100% matte tin-plated terminals, UL94V-0 flame-rated body and copper alloy lead.
350A Surge capability
4µs Maximum reverse recovery time
2.55°C/W Junction-to-ambient thermal resistance

Show

D6020L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	600 V
Current Rating	20.0 A
Output Current	≤20.0 A
Load Current	12.7 A
Number of Positions	3 Position
Forward Voltage	1.6V @12.7A
Polarity	Standard
Thermal Resistance	2.55℃/W (RθJC)
Reverse recovery time	4 µs
Forward Current	12.7 A
Max Forward Surge Current (Ifsm)	300 A
Maximum Forward Voltage (Max)	1.6 V
Forward Current (Max)	12700 mA
Operating Temperature (Max)	125 ℃
	Show
Product Lifecycle Status	Discontinued at Digi-Key
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
