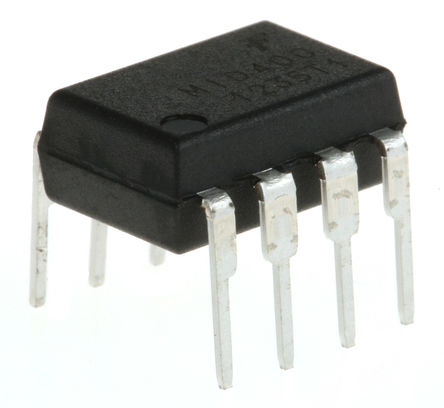

MID400 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC15223603
Category:
Optocoupler, Optoisolator
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
Optocoupler Logic Output Open Collector AC Input 1Channel 8Pin Plastic Dip Black Bulk
Stock Locations:
Availability:
934 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.19

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MID400 is an Optically Isolated AC Line-to-Logic Optocoupler. The AC line voltage is monitored by two back-to-back GaAs LED diodes in series with an external resistor. A high gain detector circuit senses the LED current and drives the output gate to a logic low condition. It has been designed solely for the use as an AC line monitor. It is recommended for use in any AC-to-DC control application where excellent optical isolation, solid state reliability, TTL compatibility, small size, low power and low frequency operations are required.
Direct operation from any line voltage with the use of an external resistor
Externally adjustable time delay
Externally adjustable AC voltage sensing level
High voltage isolation between input and output
Logic level compatibility

Show

MID400 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Voltage Rating (DC)	7.00 V
Input Voltage (DC)	1.50V (max)
Output Voltage	7.00 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Forward Voltage	1.5V (Max)
Input Current	30.0 mA
Power Dissipation	115 mW
Rise Time	1.00 ms
Isolation Voltage	2500 Vrms
Forward Current	30 mA
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	30 mA
Fall Time	1 ms
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	115 mW
Supply Voltage	7 V
	Show
Size-Length	9.91 mm
Size-Width	6.86 mm
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
