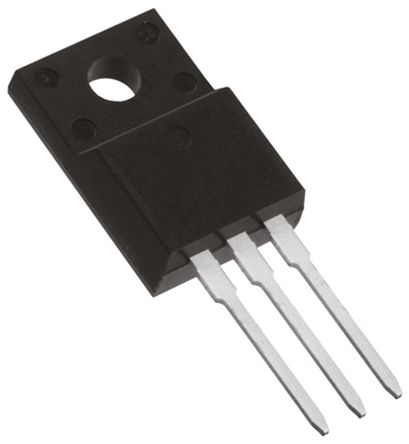

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

R6020ENX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.17 Ω
Polarity	N-Channel
Power Dissipation	68 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	20A
Rise Time	53 ns
Input Capacitance (Ciss)	1400pF @25V(Vds)
Fall Time	67 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	50W (Tc)
	Show
Size-Length	10.3 mm
Size-Width	4.8 mm
Size-Height	15.4 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
