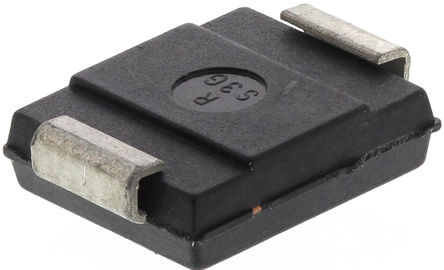

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MBRS410LT3G is a surface-mount Schottky Power Rectifier with epoxy moulded case and all external surfaces corrosion-resistant and terminal leads are readily solderable finish. This device employs the Schottky barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface-mount applications where compact size and weight are critical to the system.
Highly stable oxide passivated junction
Very low forward voltage drop
Excellent ability to withstand reverse avalanche energy transients
Guard-ring for stress protection
ESD sensitive device, take proper precaution while handling the device.

Show

MBRS410LT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AB
Voltage Rating (DC)	10.0 V
Current Rating	4.00 A
Halogen Free Status	Halogen Free
Output Current	≤4.00 A
Load Current	4 A
Number of Positions	2 Position
Forward Voltage	330mV @4A
Polarity	Standard
Thermal Resistance	12℃/W (RθJL)
Forward Current	4 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	330 mV
Forward Current (Max)	4 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	7.11 mm
Size-Width	6.1 mm
Size-Height	2.26 mm
Operating Temperature	-65℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
